The Early Zenith Radios: The Battery Powered Table Sets 1922-1927 by Gilbert M. Hedge, Durrell M. Roth

Table of Contents

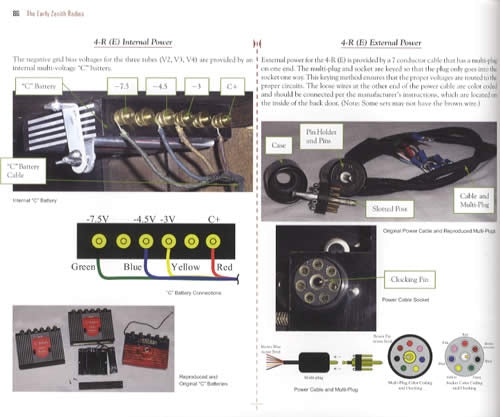

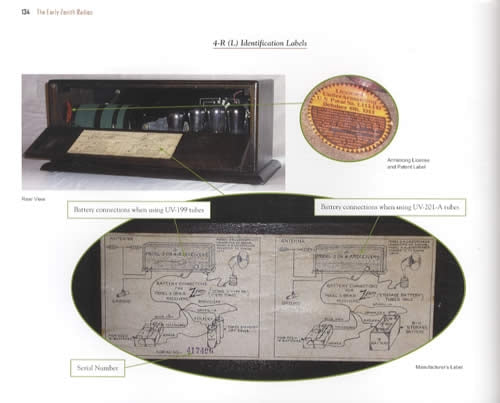

Covering the tabletop battery radios built by Zenith, the Chicago-based manufacturer, each radio is described in detail. Included are comprehensive functional descriptions on each set's operation, which uses color-coded diagrams to aid in describing the circuits. Over 400 color photos and over 200 diagrams illustrate the thorough text. Each radio section includes a Quick Reference Guide. Previously unpublished information related to these radios is included for the first time. The restoration section covers the reproduction of vital replacement parts (pointers, pulleys, etc.) that typically need replacing, the repair of other parts (variable capacitor, transformers, etc.), appropriate modifications (battery adapter, etc.), and testing in order to get that early radio working. The techniques presented can be applied to the restoration of any 1920s radio. Also included are instructions on reproducing any battery ("A", "B", or "C") in radios built in the 1920s. This is an indispensable reference guide to early Zenith radios.

433 color photos & 219 diagrams
