Ron Rich's Seeburg Mechanism Guide (Jukebox Repair), 5th Edition

Everything you wanted to know about the Seeburg mechanism but were afraid to ask.

New in the 5th edition: Several of the schematics have been expanded to 11x17 fold-outs!

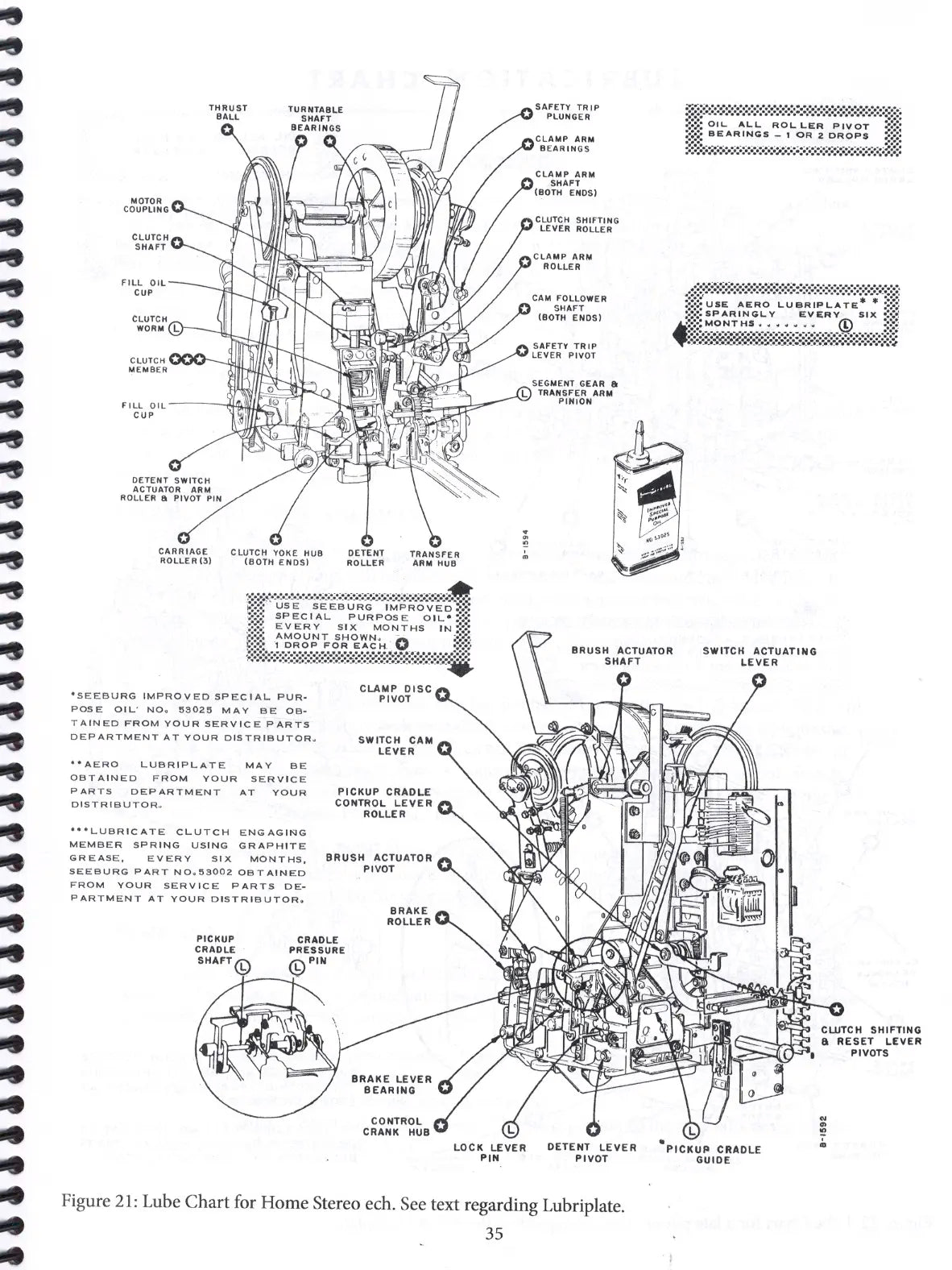

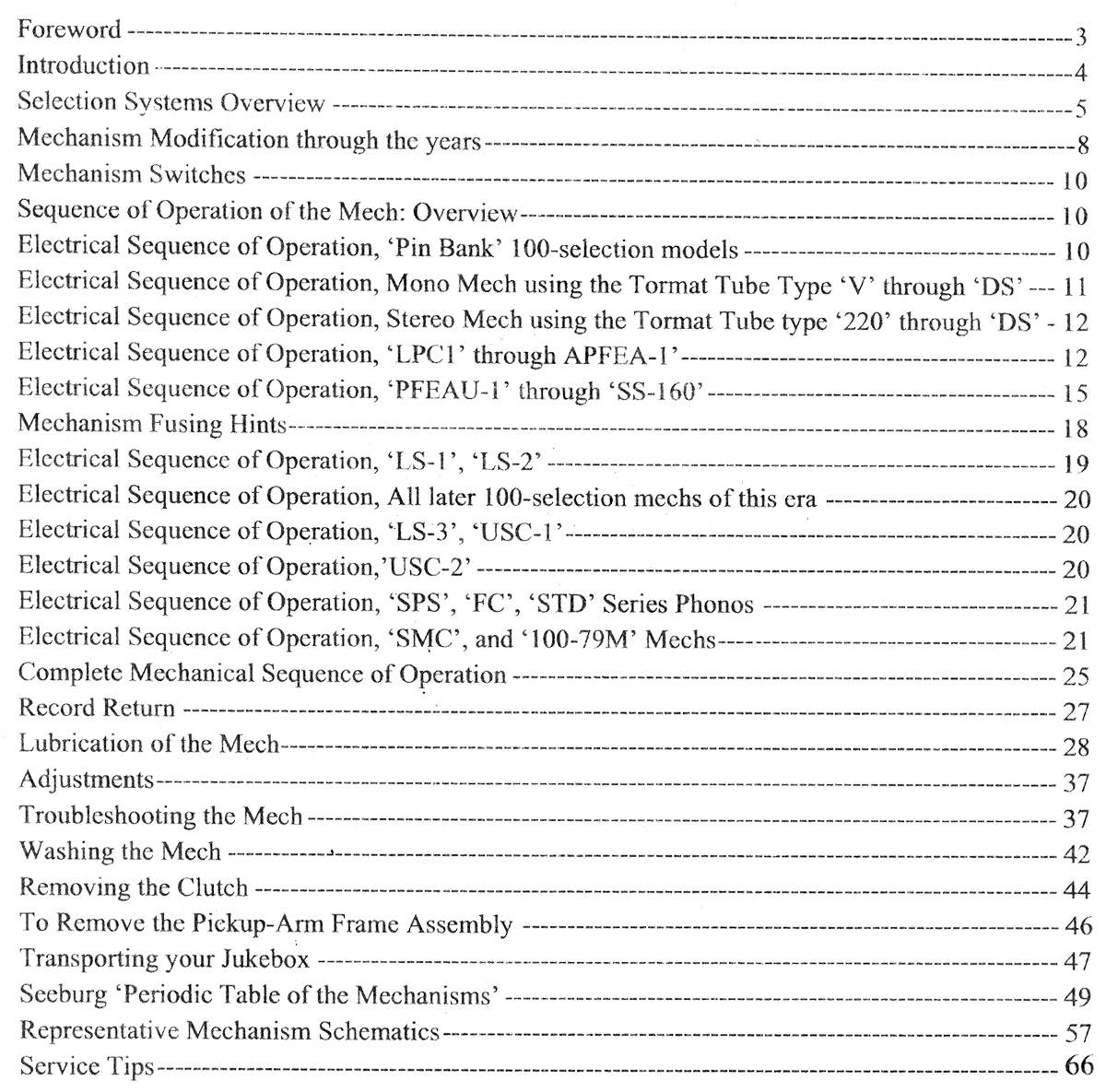

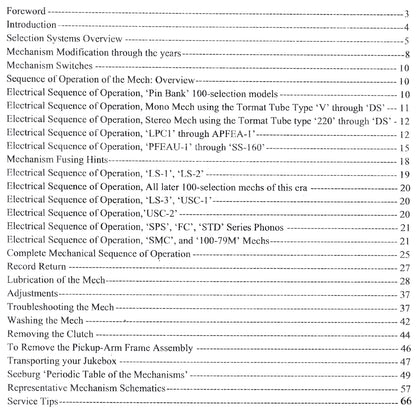

This book covers a lot of territory, from the M100B's through the SMC's Seeburg jukebox models. It goes through the mechanical sequence of operations for the mechanism, electrical sequence of operations for the variations of this mechanism design, lubrication, adjustments, cleaning, and partial disassembly. It also has a troubleshooting chart and schematic diagrams for all the different versions. There are many interesting tidbits of information from Ron's 40 years of working on Seeburgs.

This guide is designed as a supplement to the correct model service manual for your phonograph.
